CE 5l Hdpe Blow Molding Machine Bottle Making

Name: CE 5l Hdpe Blow Molding Machine Bottle Making
Brand: Sanqing
Price: 1 USD

Brand Name : Sanqing

Model Number : SQ-11

Certification : CE ISO9001

Place of Origin : Hebei, China

MOQ : 1 set

Payment Terms : L/C, T/T

Supply Ability : 50 sets/month

Delivery Time : 45 days

Packaging Details : Angle frame with outside wooden case

Name : 5L Automatic Toggled Type Clamping Blow Molding Machine, Bottle Making Machine

Dimension : 3.8*2.1*2.4m

No. of Die Heads : 1/2/3/4/6

Max Hollow Part Volume : 3L

No. of Working Stations : 2 or 1

Weight : 3t

Contact Now

Product Name

5L Automatic Toggled Type Clamping Blow Molding Machine, Bottle Making Machine

Product Description

This type of machine is able to make products like ocean balls, pitballs, milk bottles, wet wipe canisters, laundry detergent bottles, etc.

This machine has been our company's traditional advantage within the industry. We have taken a large part of market proportion in south of the country.

With our brand-new design on the machine appearances, the machine has got the opportunity to reshow its brilliancy in the near future.

System	Item	Unit	Basic Parameters
Basic	Plastic fit for		PE/PP
	Max hollow product volume	L	5
	No. of Die head	SET	1
	Size(LxWxH)	M	3.52.12.2
	Weight	TON	5
	No. of Working Station	Set	2
Molds	Clamping Force	KN	120
	Template Distance	MM	220--620
	Template Stroke		400
	Max template size(WxH)	MM	480*500
	Mould thickness	MM	225—300
Extrusion System	screw diameter	MM	75 or 65
	Screw L/D ratio	L/D	25:1
	(HDPE)Plasticizing capacity	KG/H	70
	Screw heating zone	ZONE	4
	Screw heating power	KW	16
	Extrusion motor's power	KW	22
Die head	Die head heating zone	zone	3
	Die head heating power	KW	9
	Sprue-die dia.(max)	mm	180
	Oil-pump motor power	KW	11
	air pressure	Mpa	0.6--0.8
	Average power	KW	35
	Compressed air dosage	m³/min	1.5--2.5
	Cooling water dosage	L/min	3--5

Product Tags:

5l hdpe blow molding machine

ce hdpe blow molding machine

5l hdpe bottle making machine

Quality CE 5l Hdpe Blow Molding Machine Bottle Making wholesale

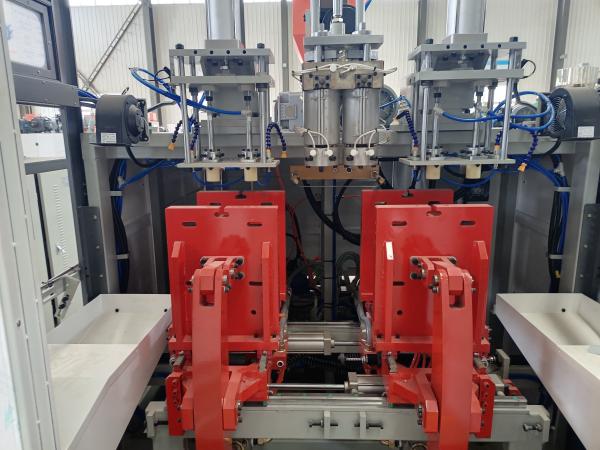

CE 5l Hdpe Blow Molding Machine Bottle Making Images
